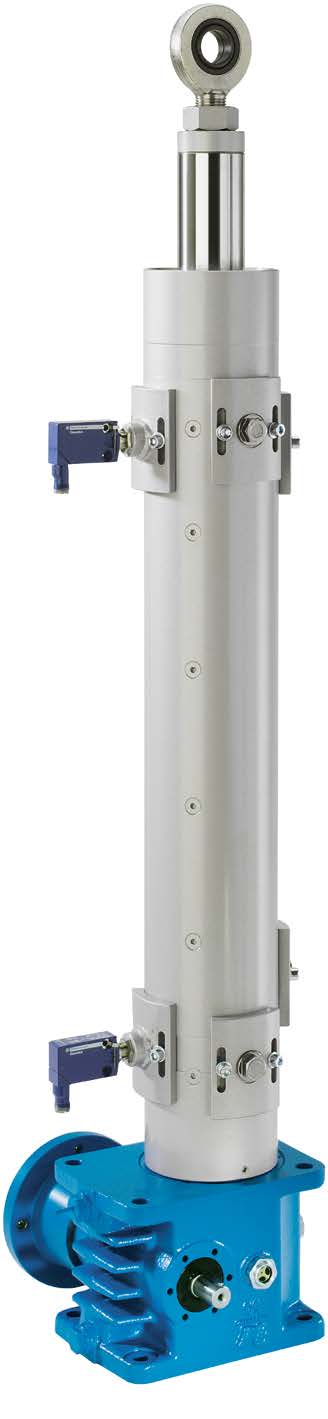

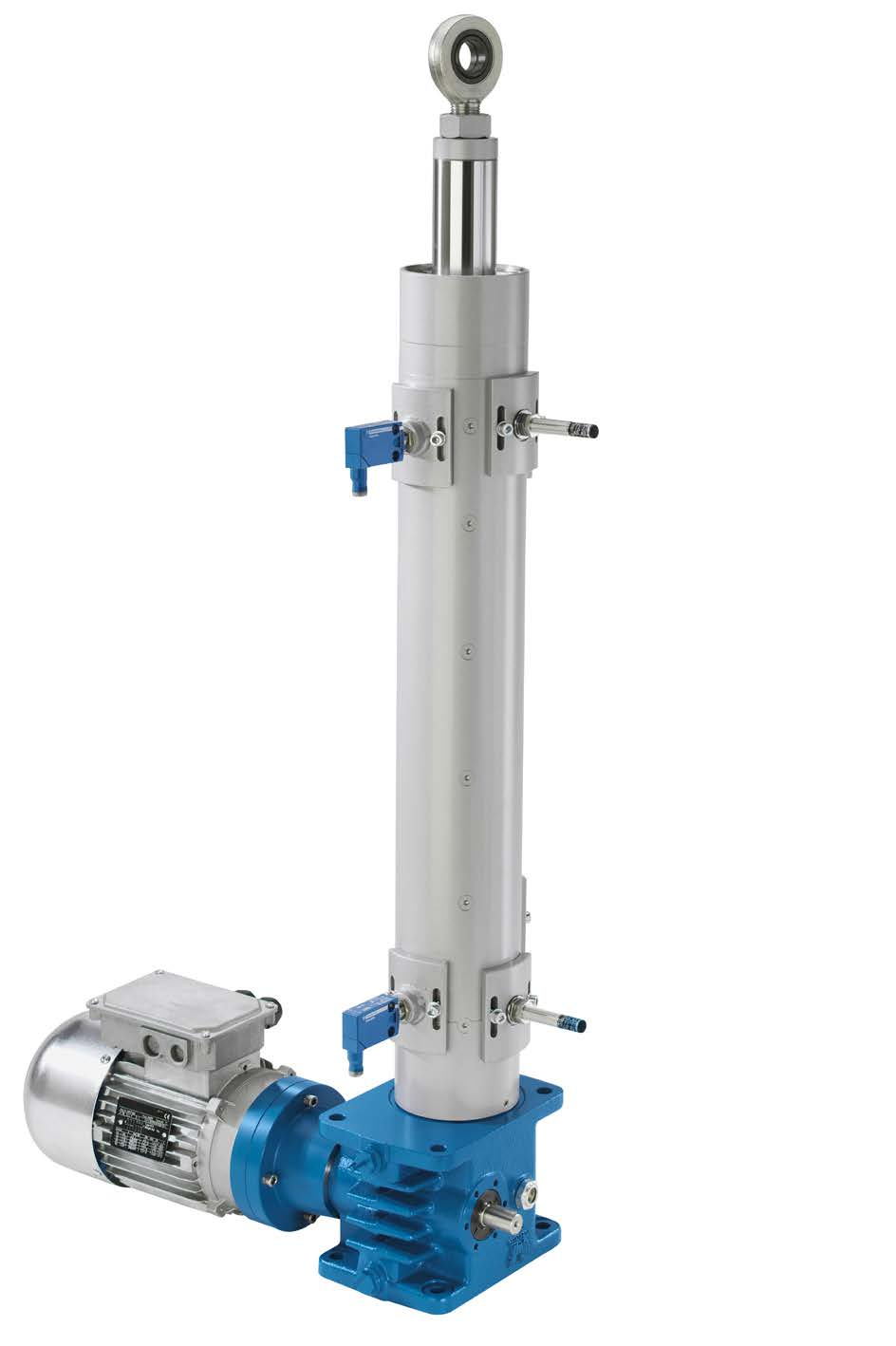

HLA High-performance linear actuator

4 sizes with maximum dynamic axial loads from

HLA 10: 12.5

kN HLA 25: 25

kN HLA 50: 50

kN HLA 100: 100 kN

§ Self-locking trapezoidal screw

§ Possible use in multi-screw lifting systems

§ Several single drives can be synchronized

§ Attachment options for any flange connection capable gear motor

§ Optional short safety nut possible

§ Low-maintenance from high-quality grease and encapsulated  design

§ Comprehensive accessories range

§ Possible usage according to directive  2014/34/EU (ATEX)

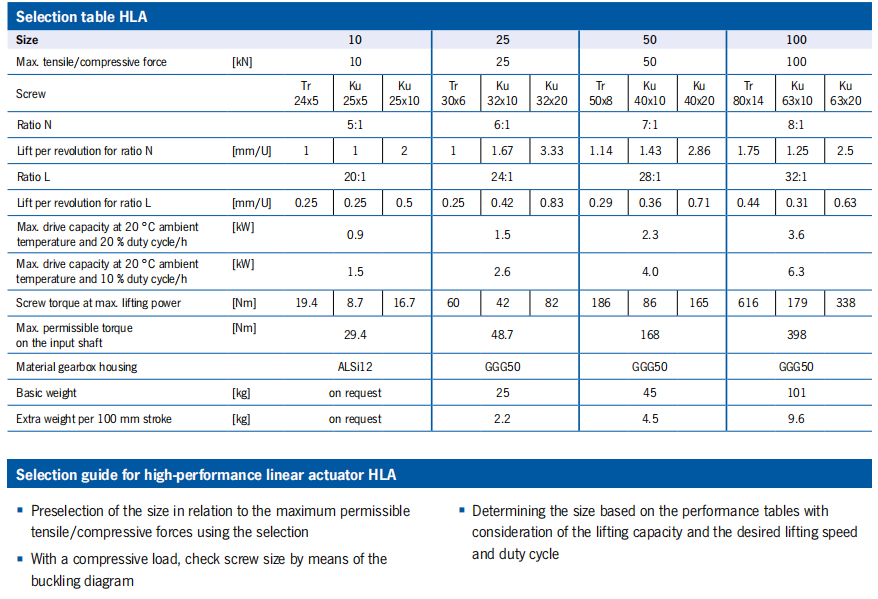

HLA Selection table

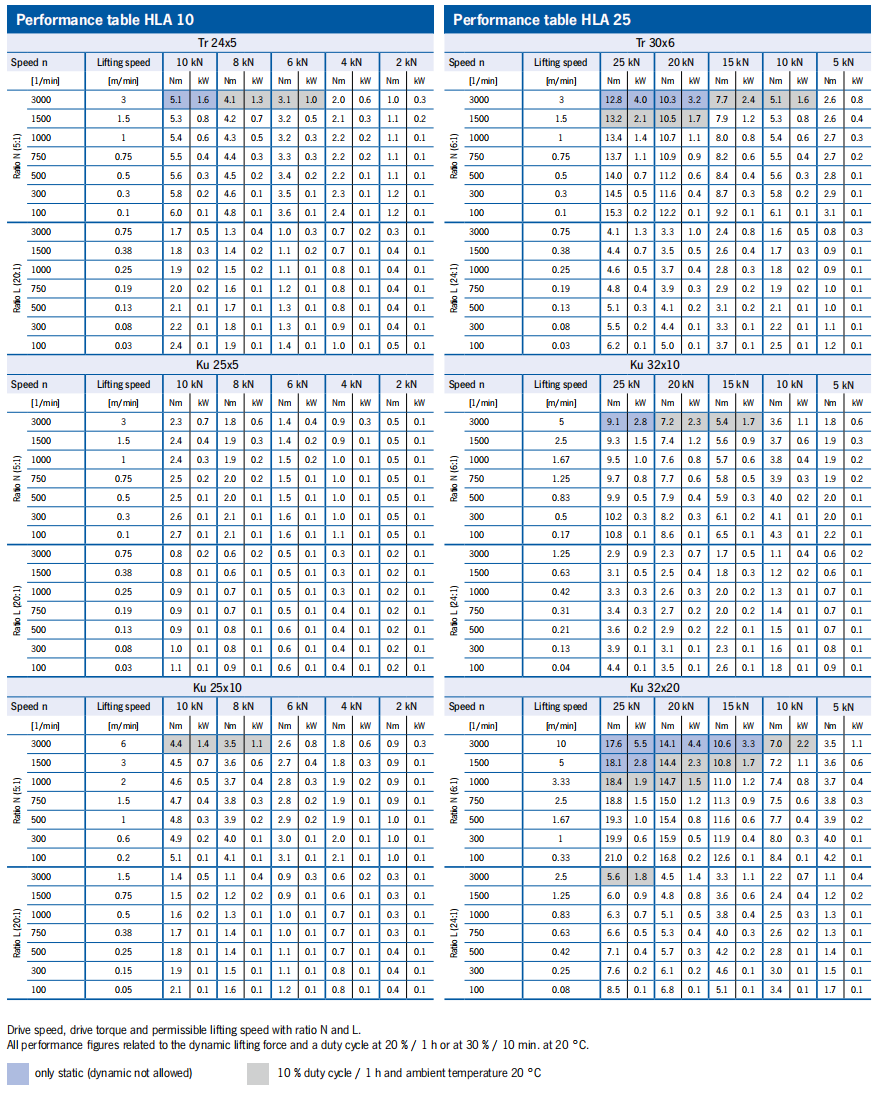

HLA Performance tables

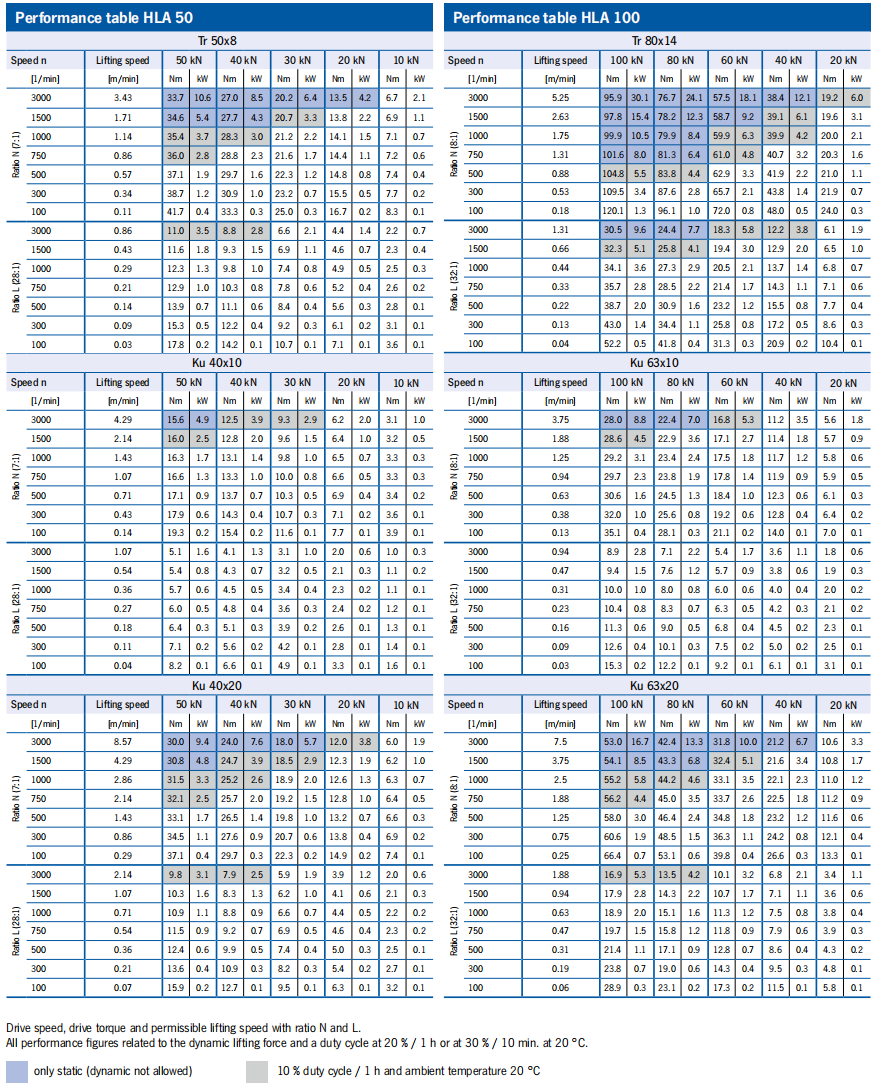

HLA Performance tables

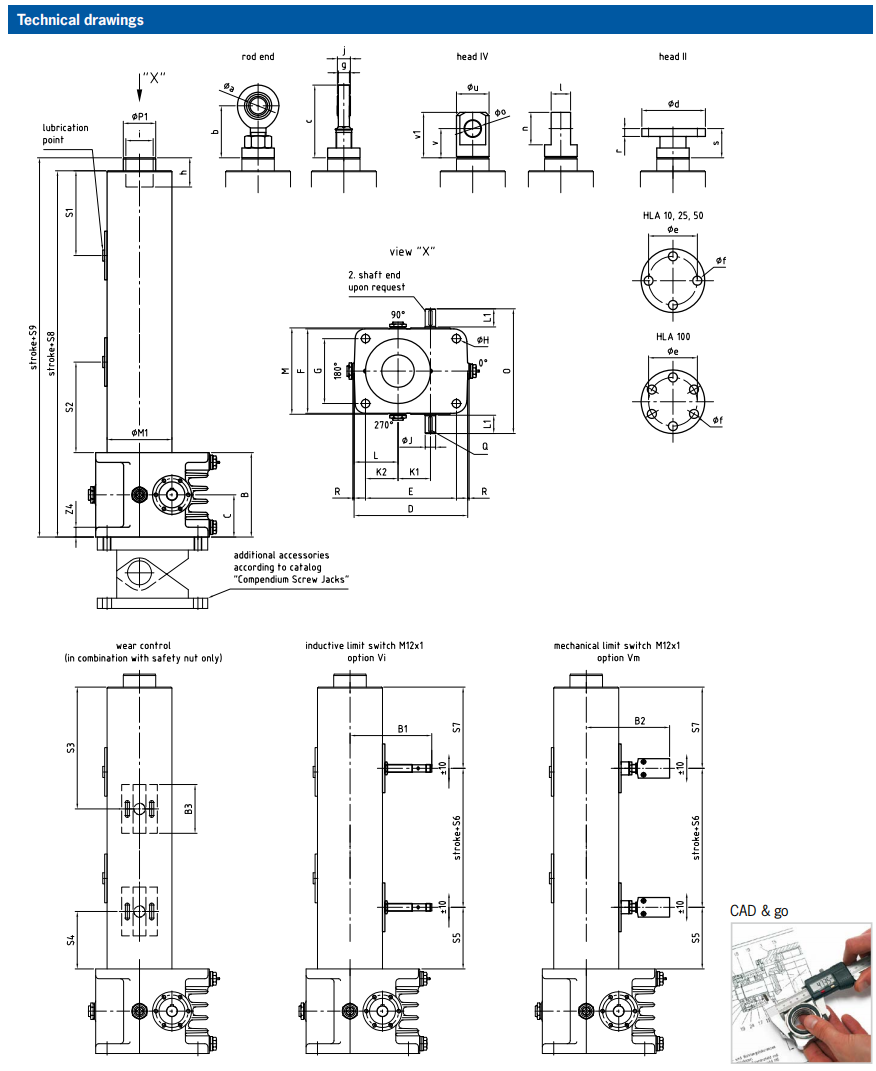

HLA Technical drawings

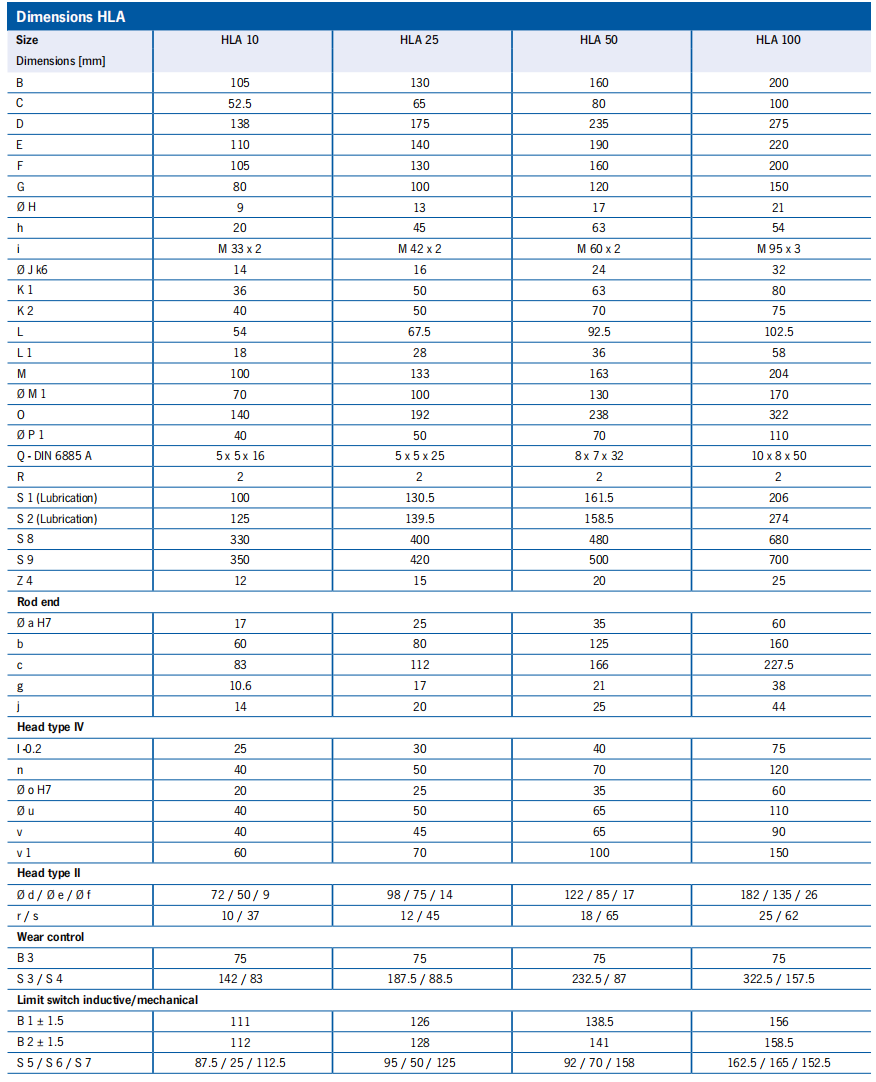

HLA Dimensions

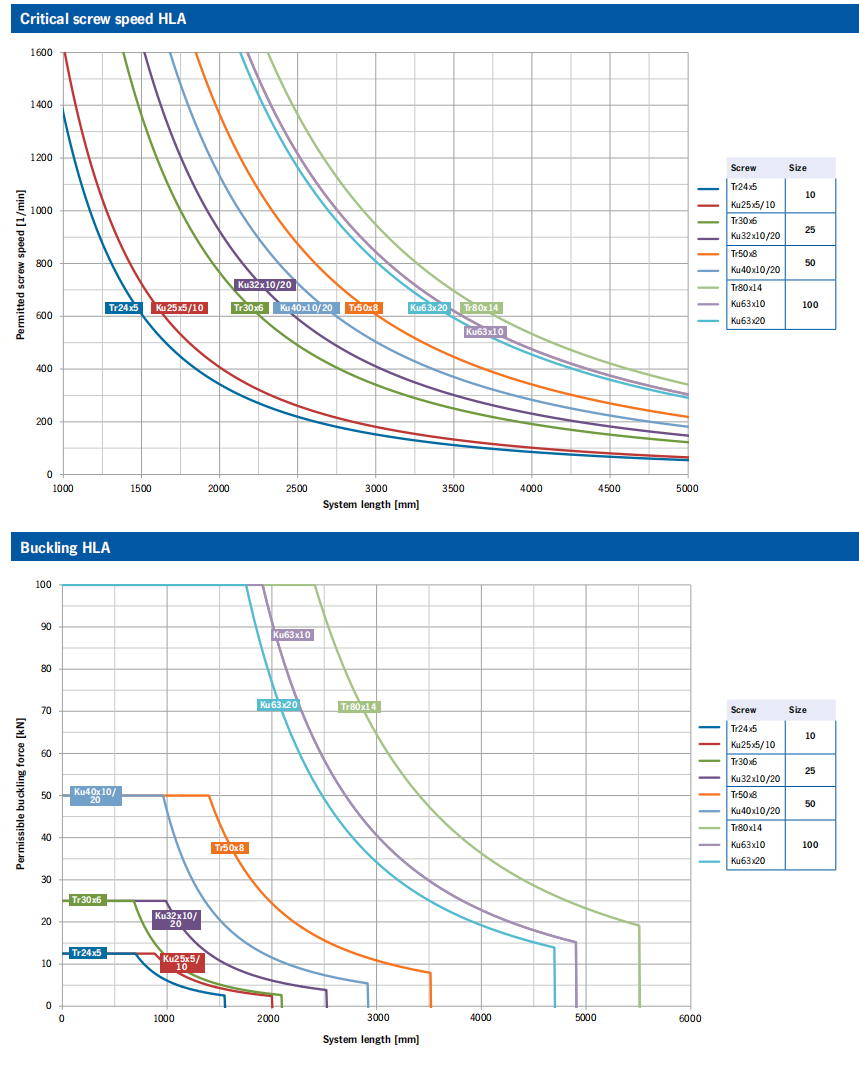

HLA Diagrams

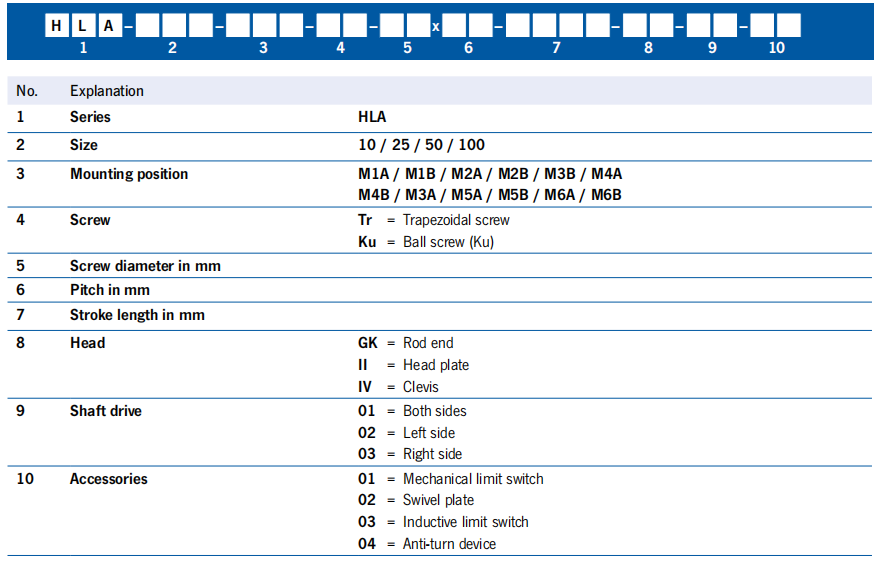

HLA Order code
